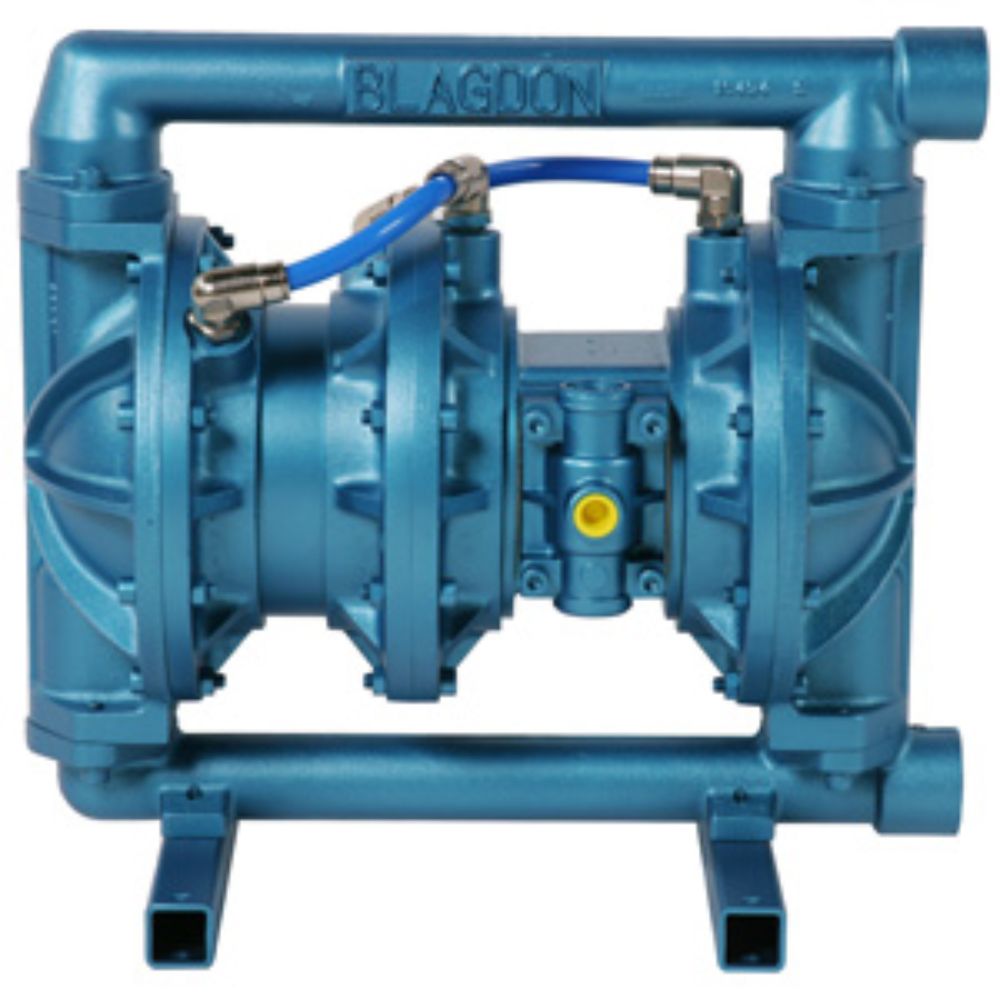

B25 Hight Pressure
B25 Hight Pressure - Image 2
B25 Hight Pressure - Image 3

B25 Hight Pressure

  • Robust construction, easy to maintain
  • Can easily handle viscous, high specific gravity, and high head applications
  • Smooth action, less vibration and wear
  • Pressures to 16 bar (232 PSI)
  • Flow rates up to 125 litres/minute (33 gal/minute)
  • Bolted construction for greater integrity
  • Reliable pneumatic air valve
  • Stalls against closed head without damage
  • Re-start on demand

Interested in our products? Connect with us easily! Simply scan the QR code or click the link to reach us on Line. We’re here to help with any questions or orders!

QR Code
Category:

Specifications

  • Maximum Delivery 125 ltrs/min (33 gal/min)
  • Max. Working Pressure 16 bar (232 PSI)
  • Max. Solid Particle Size 3 mm. (0.12″)
  • Air Inlet 3/8″ NPT
  • Temperature Limits Determined by Elastomers
  • Suction Lift (Dry) 6 metres (20 feet)
  • Suction Lift (Wet) 7.6 metres (24.9 ft)
  • Fluid Inlet / Outlet 1″ BSP / NPT
  • Installation Surface mounted
  • Accessories Included Exhaust Air Silencer
  • Shipping Weight 33 kg. (72.8 lbs) stainless steel / aluminum 24.5 kg. (54 lbs) aluminum
  • Shipping Dimensions 480 x 320 x 480 mm 18.9″ x 12.6″ x 18.9″
