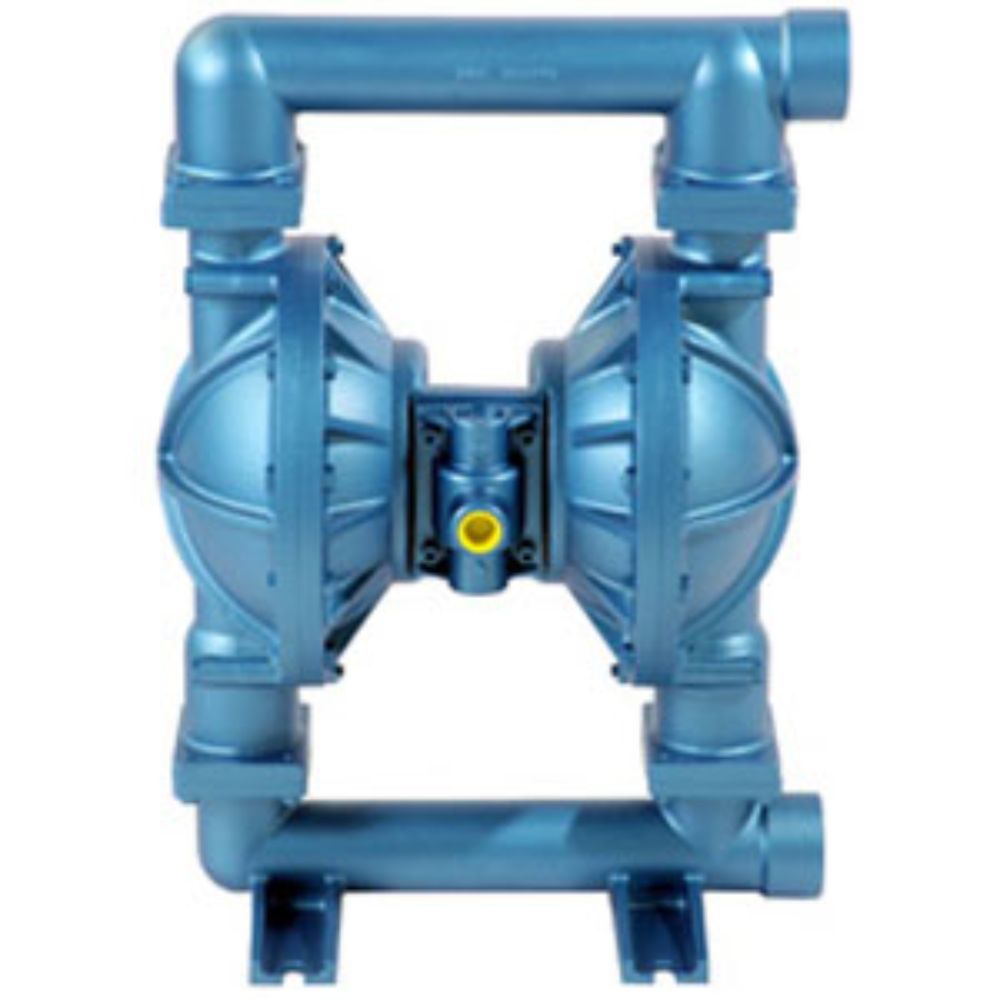

B50 Metallic Pump
B50 Metallic Pump - Image 2
B50 Metallic Pump - Image 3

B50 Metallic Pump

  • Air valve designed for in-line maintenance
  • End ported for improved flow
  • Pressures to 8.6 bar (125 PSI)
  • Flow rates up to 530 litres/minute (140 gal/min)
  • Bolted construction for greater integrity
  • Robust construction

Interested in our products? Connect with us easily! Simply scan the QR code or click the link to reach us on Line. We’re here to help with any questions or orders!

QR Code
Category:

Specifications

  • Maximum Delivery 530 ltrs/min (140 gal/min)
  • Max. Working Pressure 8.6 bar (125 PSI)
  • Max. Solid Particle Size 6 mm. (0.24″)
  • Air Inlet 3/4″ NPT
  • Temperature Limits Determined by Elastomers
  • Suction Lift (Dry) 6.1 metres (20 feet)
  • Suction Lift (Wet) 7.6 metres (24.9 feet)
  • Fluid Inlet / Outlet 2″ BSP / NPT
  • Installation Surface mounted
  • Accessories Included Exhaust Air Silencer
  • Shipping Weight
    38 kg. (83.8 lbs) aluminum
    63 kg. (138.9 lbs) cast iron / aluminum
    90 kg. (198.4 lbs) cast iron
  • Shipping Dimensions
    540 x 350 x 750 mm
    12.3″ x 13.8″ x 29.5″
