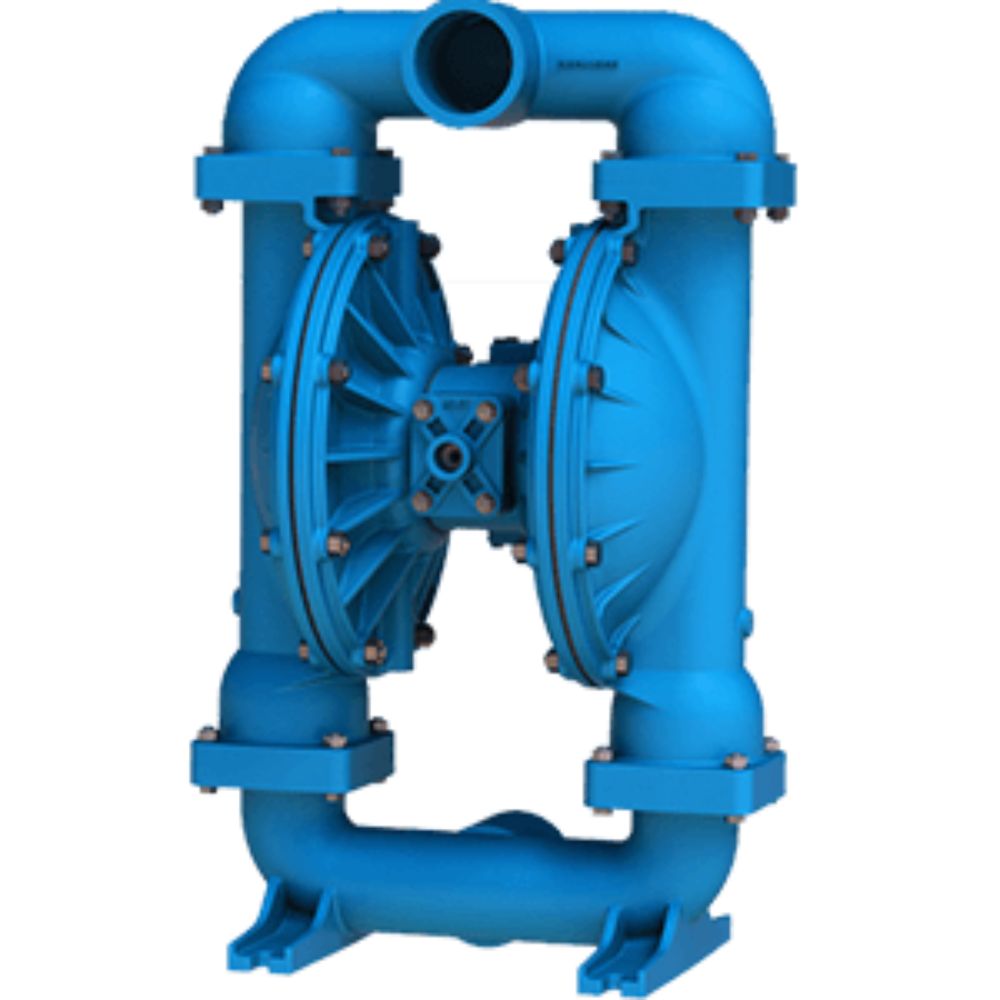

B75 Metallic Pump
B75 Metallic Pump - Image 2
B75 Metallic Pump - Image 3

B75 Metallic Pump

  • Air valve designed for in-line maintenance
  • Available center ported
  • Pressures to 125 psi (8.6 bar)
  • Flow rates 0 to 285 gallons per minute (0 to 1,078 LPM)
  • Bolted construction for greater integrity
  • Robust construction

Interested in our products? Connect with us easily! Simply scan the QR code or click the link to reach us on Line. We’re here to help with any questions or orders!

QR Code
Category:

Specifications

  • Suction / Discharge Port Size
    3” NPT or 3” BSP Tapered
    3” ANSI Flange or 3” DIN Flange
  • Head Up To
    125 psi or 289 ft. of water
    (8.6 Kg/cm2 or 86 meters)
  • Capacity to 285 gallons per minute (0 to 1,078 LPM)
  • Maximum Operating Pressure 125 psi (8.6 bar)
  • Air Distribution Valve No-lube, no-stall design
  • Displacement/Stroke 1.00 Gallon / 3.79 liter
  • Solids-Handling Up to .38 in. (9.65mm)
  • Weight
    Aluminum 116 lbs. (53kg)
    Cast Iron 215 lbs. (98kg)
    Stainless Steel 194 lbs. (87kg
